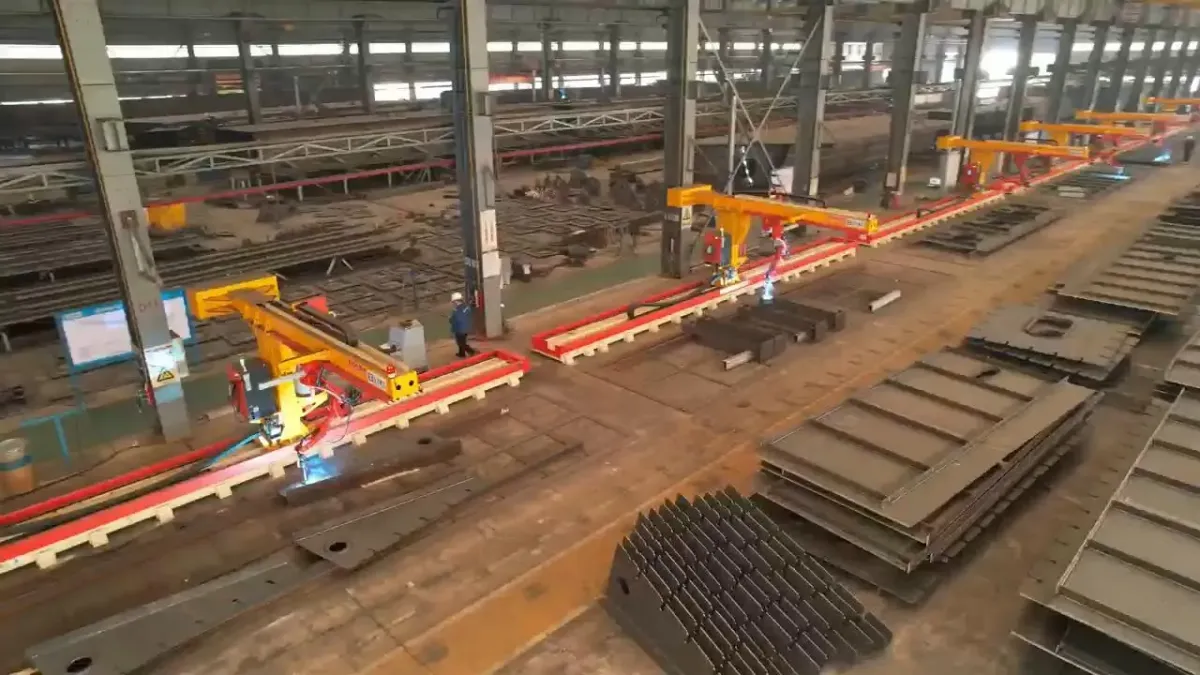

Access to three-dimensional parts
Rail, cross-slide and vertical movement carry the inverted arm around frames and box-type structures.
9-Axis Cantilever Robot
9-Axis Inverted Cantilever Welding Robot
An inverted six-axis arm on three linear axes welds bridge plate units, three-dimensional frames, box-type components and extra-long seams.
Import a model, or scan a part without drawings to build its model before welding. Send your parts for a free evaluation and a factory-direct quotation.
9-Axis Robot in Numbers
- 9 m
- Standard rail length
- 2.5 m
- Cross-slide travel
- 2.5 m
- Vertical travel
- ≤3,500 mm / ≤2,000 mm
- Maximum part width / height
Why Choose a 9-Axis Station?
Scan parts without drawings
Robot vision and large-field line-scan stereo vision capture the part for reverse modelling before welding.
Travel along long seams
The standard 9 m rail carries the station along the workpiece, with 2.5 m cross-slide and 2.5 m vertical travel.
What the 9-Axis Robot Welds
- Three-dimensional steel frames and box-type components
- Bridge plate units and extra-long component seams
- Part plates and other components without drawings or models
Parts can be up to 3,500 mm wide and 2,000 mm high. Equipment frames are one example of the three-dimensional work suited to this layout.
What Comes With the Station
- Inverted six-axis welding arm with a reach of 2,000 mm.
- Cantilever with a 9 m rail, 2.5 m cross-slide travel and 2.5 m vertical travel.
- Our own welding software for model import and reverse modelling from a scan.
- Robot vision and large-field line-scan stereo vision for scanning parts.
- Water-cooled welding torch and torch cleaning station.
- Water-cooled pulsed welding power source for MIG / MAG gas-shielded welding.
9 Axes or a 7 / 8-Axis Station?
| Station | Movement and approach | Choose it for |
|---|---|---|
| 7-axis rail-mounted | Travels beside the part on a ground rail. | Long steel beams and columns. |
| 8-axis cantilever | Works from above across wide, flat components. | Bridge plate units, diaphragms and stiffened plates. |
| 9-axis cantilever | Adds cross-slide and vertical movement to rail travel. | Three-dimensional frames, box-type parts and parts without drawings. |
See the 7-axis rail-mounted robotSee the 8-axis cantilever robot
Get a Free Evaluation for Your Parts
Tell us the part width, height and seam layout. Send a model, drawing or photo for a free assessment.
What happens next
Prefer email? sales@steelweldingrobot.com
9-Axis Welding Robot Questions
What does 9-axis mean?
The robot arm has six axes. The rail, cross slide and vertical lift add three linear axes: 9 m rail length, 2.5 m cross travel and 2.5 m vertical travel in the standard configuration.
Can the 9-axis robot weld without drawings?
Yes. Large-field line-scan stereo vision captures the part, and our software builds a model from the scan before welding. You can also import an existing model.
What is the maximum part size?
Parts can be up to 3,500 mm wide and 2,000 mm high. Equipment frames are one example of the three-dimensional work suited to this layout.
Should I choose 9 axes or 8 axes?
Choose the 8-axis cantilever for wide, flat plates and bridge units worked from above. The 9-axis layout adds cross-slide and vertical travel for three-dimensional frames and box-type parts.
How is the 9-axis station quoted?
Send drawings, a model or photos of your parts. Our engineers evaluate the parts free of charge and recommend a station with a factory-direct quotation.
